S2 MagicFilter

Data filtering

filter markers

It is recommended to first run MagicBase.vcffilter for fast online marker filtering.

The magicfilter sequentially performs the following:

  1. Filter for subpopulations with size >= min_subpop. By default, min_subpop=1 (i.e. not performed).
  2. Remove founders (and their offspring) if their numbers of progeny < min_nprogeny. By default, min_nprogeny=1 (i.e., not performed).
  3. Test monomorphic for each subpopulation at each marker.
  4. Filter for markers with snp_missfilter(f,o) for founder missing fraction f and offspring missing fraction o.
  5. Filter for markers with minor allele frequency <= snp_minmaf.
  6. Filter for offspring with missing fraction <= offspring_maxmiss.
  7. Remove duplicated offspring (isfilterdupe = true) by keeping one of them with the least missing values; a pair of offspring are duplicated if their allelic correlation >= offspring_maxcorr.
# code for Julia
using MagicFilter
cd(@__DIR__)
genofile = outstem*"_magicsimulate_geno.vcf.gz"
pedfile = outstem*"_magicsimulate_ped.csv"
magicfilter(genofile,pedfile;
    snp_minmaf = 0.05,
    snp_missfilter = (f,o) -> o <= 0.9 || f <= 0.1,
    offspring_maxmiss = 0.95,
    isfilterdupe = true,  # default false
    outstem
)
# code for Linux shell.
# For Window CMD, replace multiline key \ by  ^, and replace comment-key # by ::
# For CLI, snp_missfilter = (f,o) -> o <= snp_maxomiss || f <= or_snp_maxfmiss
julia rabbit_magicfilter.jl -g example_magicsimulate_geno.vcf.gz \
    -p example_magicsimulate_ped.csv \
    --snp_minmaf 0.05 --snp_mono2miss true \
    --snp_maxomiss 0.9 \
    --or_snp_maxfmiss 0.1 \
    --offspring_maxmiss 0.95 \
    --isfilterdupe true \
    -o example

Output files

outfileDescription
outstem*"_magicfilter.log"log file
outstem*"_magicfilter_geno.vcf.gz"filtered genofile for downstream analysis
outstem*"_magicfilter_ped.csv"filtered pedfile for downstream analysis
outstem*"_magicfilter_ped.png"plot for filtered pedfile
outstem*"_magicfilter_subpop_size.csv"size of each subpopulation
outstem*"_magicfilter_subpop_size.png"plot distribution of subpopulation size
outstem*"_magicfilter_founder_nprogeny.csv"number of progeny for each founder
outstem*"_magicfilter_founder_change.csv"changes in founder genotypes
outstem*"_magicfilter_ind_missing.csv"missing fraction for founders and offspring
outstem*"_magicfilter_ind_missing.png"plot distribution of missing fraction among individuals
outstem*"_magicfilter_snp_sum.csv"summary of monomorphic test
outstem*"_magicfilter_snp_MAF.png"plot distribution of MAF
outstem*"_magicfilter_snp_missing.png"plot distribution of missing fraction among markers

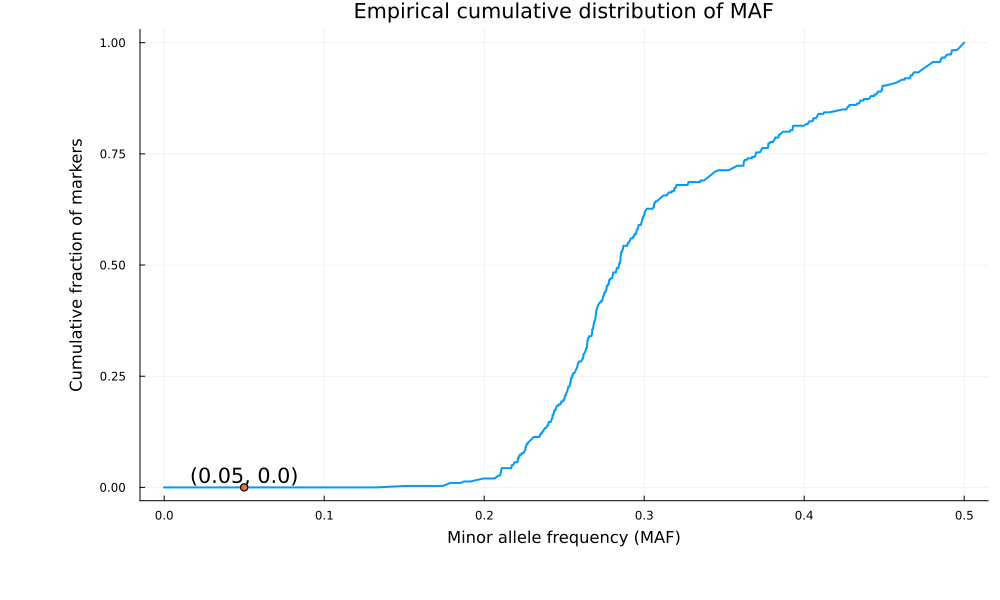

Output: empirical CDF of MAF

outstem*"_magicfilter_snp_MAF.png" plots the empirical cumulative distribution function (CDF) of MAF per marker. See outstem*"_magicfilter_snp_sum.csv" for the exact results. The MAF is calculated among offspring for each marker. The red dot indicates the fraction of removed markers for the given threshold snp_minmaf = 0.05.

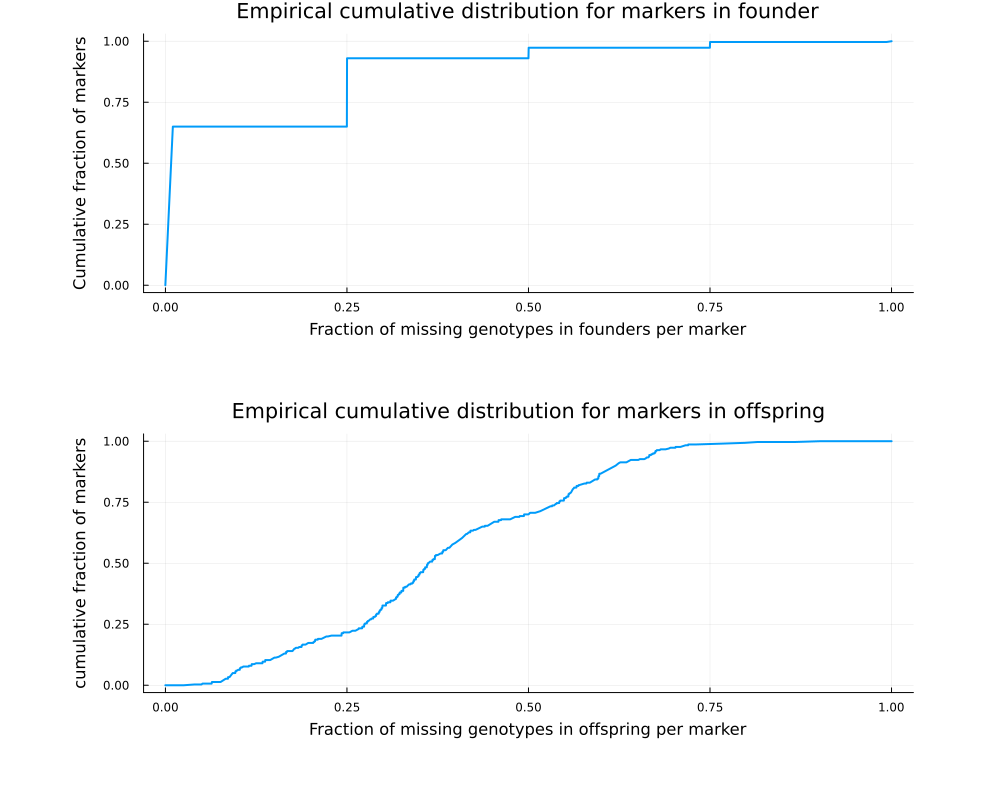

Output: empirical CDF of missing fraction per marker

outstem*"_magicfilter_snp_missing.png" plots the empirical CDF of missing fraction per marker for founders and offspring, respectively. See outstem*"_magicfilter_snp_sum.csv" for the exact results.

Output: empirical CDF of missing fraction per individual

outstem*"_magicfilter_ind_missing.png" plots the empirical CDF of missing fraction per individual. See outstem*"_magicfilter_ind_missing.csv" for the exact results. The red dot indicates 1 - fraction of removed markers for the given threshold offspring_maxmiss.

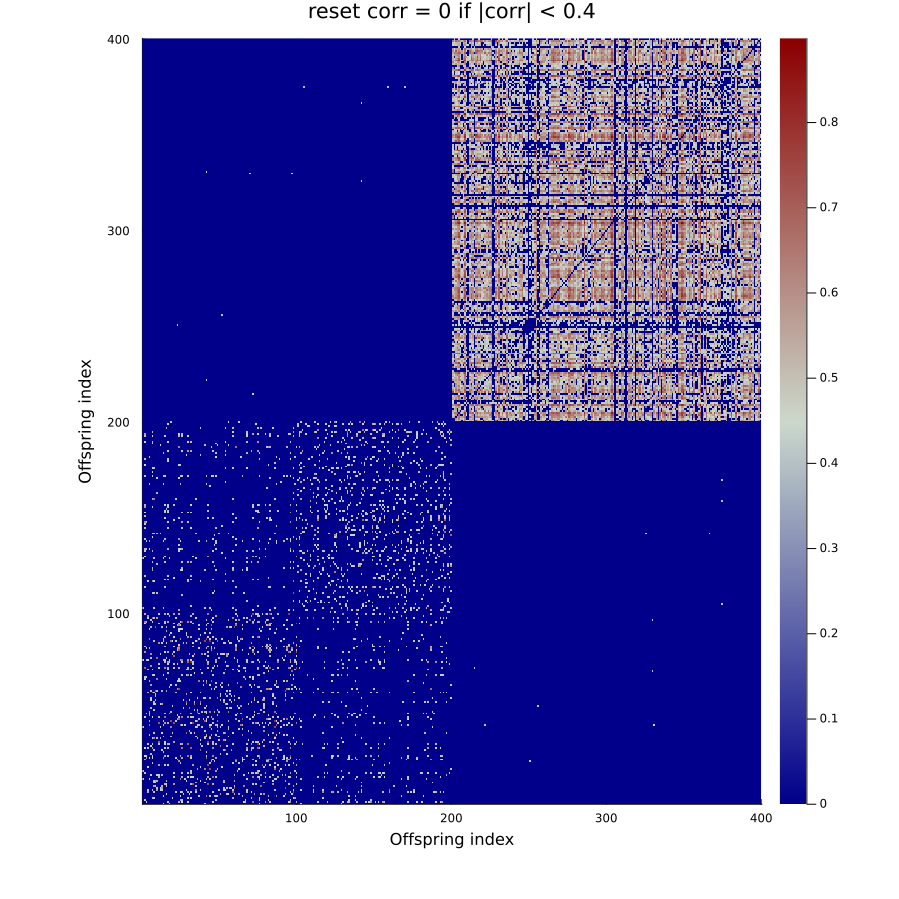

Output: offspring duplicate

outstem*"_magicfilter_ind_correlation.png" gives the heatmap of allelic correlation for each pair of offspring. A pair of offspring is assumed to be duplicated if their correlation > offspring_maxmiss. By default, offspring_maxmiss = 0.99. These output files are produced only if isfilterdupe = true.
